Electro-Hydraulic Servo CNC Press Brake

Features :

  1. Electro-hydraulic system is adopted to control dual cylinders to get high synchronized controlling accuracy, high bending accuracy, and re-positioning accuracy.
  2. The mechanical deflection automatic compensation system is adopted to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system to facilitate accuracy.

(1) The machine is compensated by a two-way adjusting structure, which can satisfy the compensation of the transverse and longitudinal direction of the machine.

(2) The dense point compensation method is adopted to make the bending accuracy more accurate.

(3) the bending of the same plate thickness material compensation once in place, different from the hydraulic compensation and back and forth movement of the structure, mechanical compensation greatly reduce the machine tool workbench fatigue deformation, improve its service life;

(4) Use special reducer and high precision potentiometer to control accurately control the accuracy of compensation.

(5) Different from the three-plate structure of hydraulic compensating worktable, this device adopts single-plate worktable design, which can effectively prevent interference in bending workpiece

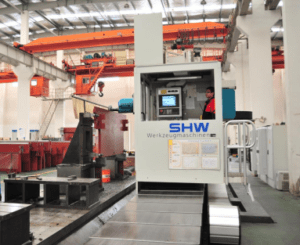

  1. The frame is assembled in one time after welding, it is processed by CNC pentahedron processing center, ensuring the rigidity and processing accuracy of the frame.



Product description





Specification

Specification Unit 30/1050 50/1300 60/1500 60/2050 60/2550 100/3100 100/4100
Max. Bending Force KN 300 500 600 1000
Max. Bending Length mm 1050 1300 1500 2050 2550 3100 4100
Column Distance mm 700 900 1100 1600 2000 2600 3600
Throat Depth mm 300 300 300 400
Ram Stroke mm 165 165 165 215
Closed Height mm 420 420 420 420
Approaching Speed mm/s 160 160 150 160
Working Speed mm/s 10 10 11 10
Return Speed mm/s 120 120 120 130 120
Main Motor Power Kw 4 5.5 5.5 7.5





Specification Unit 150/3100 150/4100 225/3100 225/4100 320/3100 320/4100 400/3100 400/4100
Max. Bending Force KN 1500 2250 3200 4000
Max. Bending Length mm 3100 4100 3100 4100 3100 4100 3100 4100
Column Distance mm 2600 3600 2600 3600 2600 3600 2600 3600
Throat Depth mm 400 400 400 400
Ram Stroke mm 215 215 265 265
Closed Height mm 420 480 530 530
Approaching Speed mm/s 120 130 110 120 80 90 100 110
Working Speed mm/s 9 8 8 8
Return Speed mm/s 110 90 85 85
Main Motor Power Kw 11 15 22 30



Main Technical Features

The frame is assembled in one time after welding, it is processed by CNC pentahedron processing center, ensuring the rigidity and processing accuracy of the frame.



Integrated hydraulic controlling system decreases pipeline, thus avoids oil leakage and improves the stability of performance, also the appearance of the machine is beautified.



CNC System

Delem



cybelec



Press brake with auto loading/unloading project
