Product description
Specification
Item | Unit | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 250T |
Nominal Force | KN | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2500 |
Max.pressure of liquid | Mpa | 8.1 | 13 | 20.3 | 23 | 25 | 26.3 | 25 | 26 |
Max.opening height | mm | 500 | 600 | 600 | 700 | 800 | 700 | 900 | 900 |
Max.stroke of slider | mm | 300 | 350 | 350 | 400 | 500 | 400 | 500 | 500 |
Downstream speed of slider | mm/s | 85 | 110 | 110 | 85 | 85 | 180 | 24 | 23 |
Return speed of slider | mm/s | 120 | 120 | 120 | 120 | 120 | 160 | 65 | 55 |
Working speed | Adjustable range:7—–15 | ||||||||
Throat Depth | mm | 220 | 250 | 250 | 280 | 320 | 320 | 325 | 325 |
Upper-table size F.B. | mm | 320 | 320 | 350 | 350 | 450 | 450 | 500 | 600 |
Upper-table size L.R. | mm | 400 | 450 | 500 | 500 | 550 | 550 | 800 | 1000 |
Lower-table size F.B. | mm | 420 | 480 | 480 | 500 | 550 | 600 | 600 | 600 |
Lower-table size L.R.. | mm | 500 | 550 | 550 | 600 | 700 | 800 | 1000 | 1200 |
The height between working table and the floor | mm | 750 | 750 | 750 | 700 | 715 | 750 | 700 | 700 |
Blanking Aperture | KW | 80 | 80 | 80 | 100 | 100 | 100 | 120 | 200 |
Motor Power | KW | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 7.5 | 11 |
Total Weight(Approx) | Kg | 1800 | 2300 | 3000 | 3700 | 4800 | 5500 | 11000 | 16500 |

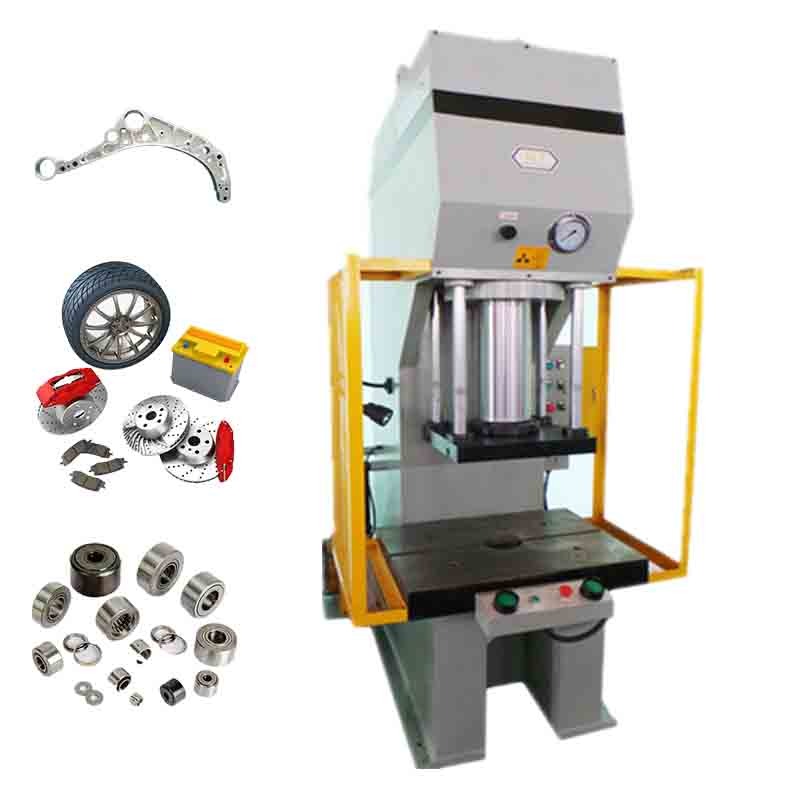

C Frame Type Hydraulic Press Machine mainly used in the process of stretching, forming and pressing metal products. It can also process non-metallic materials, pressing of powder metallurgy products, correction of shaft parts, press-fit of sleeve parts, and shaping and trimming of metal products.
Features&Accessories
The C Frame Hydraulic power press machine we made has high equipmed, with famous components.
- Schneider Electrical Components
- With Ejection Cylinder
- Mitsubishi Brand PLC
- Human-Machine Interface
Main parts of 30 ton Servo Hydraulic press machine
Package & Delivery
Packaging Details for C frame hydraulic Press Machine:
Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
single column hydraulic press machine
Delivery Time
Shipped in 30 days after payment
